Outstanding Features

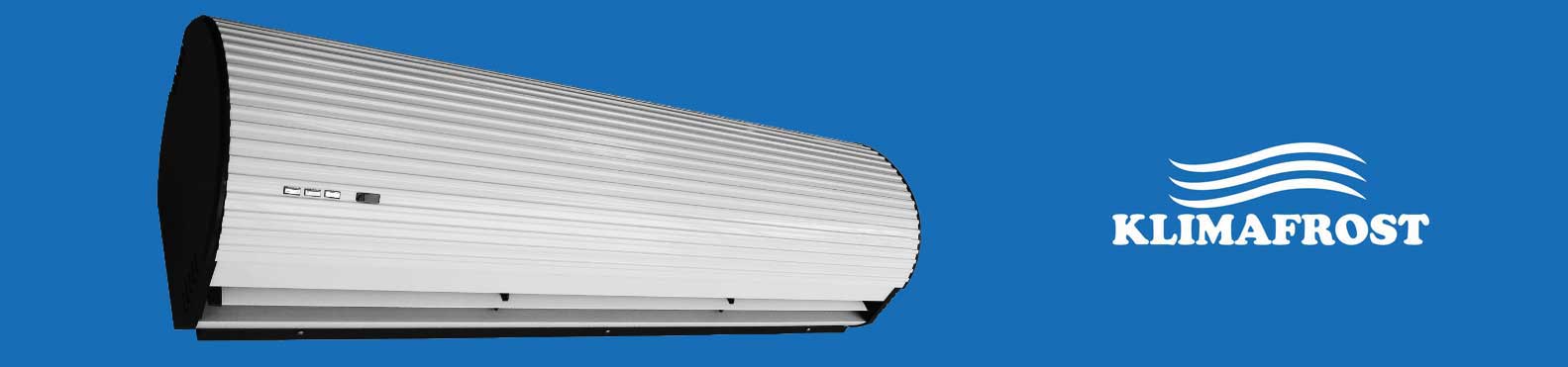

Feature: New fashion specialty designing, unique curve arcshape, full aluminum body, won’t be rusty and discoloration; The body is without visible screw, elegant appearance; adopting high performance motor, safe and reliable; using designed centrifugal turbine with strong wind; adopting updated remote control with high and low speeds operation; suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and of her entrances of high-grade places etc.
Installation height: 3-4m
At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensure that we reach standards higher than similar products from international manufacturers. We want consumers to depend on the precision and reliability of our Air Curtain machinery.
Applications: door entrance
| Business Organizations | Supermarket, large-scale shopping malls, chain shops, department store, star-rated hotels, restaurants; |
| Entertainments | Movie theaters, clubs, bars, cafes, Internet bars, beauty shops. |
| Model | Dimensions | Voltage/ | Motor Power | Air-Flow | Air-speed | No* (db) | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | Frequency | (VV) | (m /h) | (m/s) | (kg) | |||||
| Hi | Low | Hi | Low | Hi | Low | |||||
| Klimafrost Air-Curtain 90cm White with R/Control FM-4009-LY S5 | 900 x 220 x 240 | 220 ~ 50 Hz | 300 | 270 | 1400 | 1000 | 16-20 | 57 | 54 | 13.5 |
| Klimafrost Air-Curtain 100 cm White with R/Control FM-4010-LY S5 | 1000 x 220 x 240 | 220 ~ 50 Hz | 320 | 290 | 1550 | 1100 | 16-20 | 57 | 54 | 14 |
| Klimafrost Air-Curtain 120cm White with R/Control FM-4012-LY S5 | 1200 x 220 x 240 | 220 ~ 50 Hz | 400 | 370 | 1900 | 1500 | 16-20 | 58 | 55 | 16 |
| Klimafrost Air-Curtain 150cm White with R/Control FM-4015-LY S5 | 1500 x 220 x 240 | 220 ~ 50 Hz | 500 | 470 | 2300 | 1900 | 16-20 | 61 | 58 | 20.5 |
| Klimafrost Air-Curtain 180cm White with R/Control FM-4018-LY S5 | 1800 x 220 x 240 | 220 ~ 50 Hz | 620 | 590 | 3255 | 2855 | 16-20 | 63 | 61 | 24 |
| Klimafrost Air-Curtain 200cm White with R/Control FM-4020-LY S5 | 2000 x 220 x 240 | 220 ~ 50 Hz | 620 | 590 | 3255 | 2855 | 16-20 | 64 | 62 | 27 |
