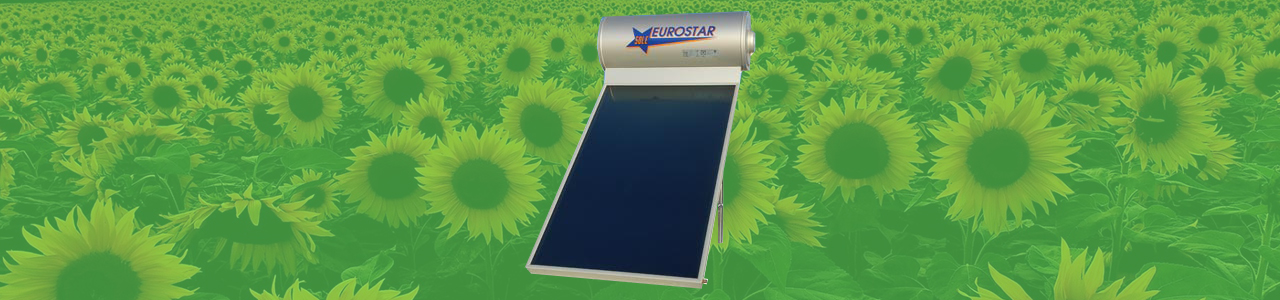

Eurostar Eco

Type 80-1-100 100-1-125 125-1-150 150-1-200 200-1-200 300-2-200
Technical Characteristics
Collectors
No. of collectors 1 1 1 1 1 2
Area of collector (m2) 1.00 1.23 1.48 1.88 1.88 3.76
Dimensions (mm) 1026x960x81 1280x960x81 1540x960x81 1540x960x81 1960x960x81 1960x960x81
Weight (kg) 20 22 27.30 32 32 64
Technical Specifications
Frame Aluminium profile. Free of screws and rivets
Cover Tempered low iron prismatic glass 3.22mm 90.05% transmission
Sealing Acrylic foam – Silicon
Insulation Rockwool 40mm (50kg/m3) back and glass wool 20mm (30kg/m3) sides
Absorber Material Blue selective aluminium fins 0.50mm thickness, welded to cooper pipes with laser welding
Absorption 95% (± 0.02)
Emissivity 5% (± 0.02)
Max. Working Pressure 1000kPa
Max. Working Temperature 150°C
Tank
Normal capacity (It) 80 100 125 150 200 300
Weight empty 32 41 49 55 61 95
Technical Specifications
Boiler Body The boiler ‘body’ is made from USD 37.2 Steel Plate. The boiler is (glass) enamelled with the advance double ‘direct’ method ‘fired’ at 860°C
Heat Exchanger Internal heat exchanger made from 3.0mm U.S.D. 37.2 Stel Sheet
Insulation Polyurethane 50mm (40kg/m3) cast under pressure
External Cover Steel Sheet galvanized, powder coated, oven treated RAL 9006
Anode Protection Magnesium rod
Max. Working Pressure 10 bar
Max. Working Temperature of Solar Circuit 150°C
